Name

vtp5 — Video test pattern

Synopsis

vtp5

Description

Video test pattern, filling the whole of the screen with the following pattern. Left hand side is a vertical blue bar, 8 pixels wide, with red single line at the top. The right hand side is green. The right hand side is a vertical green bar, 8 pixels wide, with a blue cap on the top line. The rest of the screen is an alternating 8x8 white and black block pattern

This command will not be available if the frame buffer is disabled.

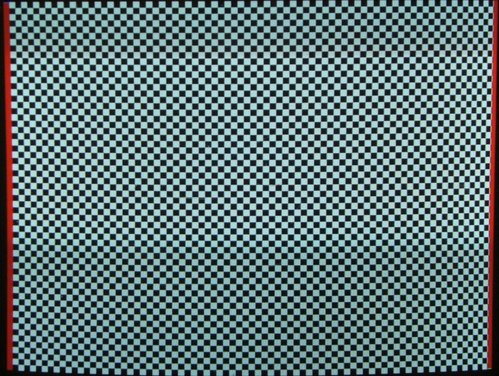

Figure 12. Video test pattern 5

Video test pattern 5
