2.1. Overview

The EB675001DIP is a complete system that includes a large number of Input/Output facilities. The addition of the user programmable logic, in the form of the 64 Macrocell Xilinx CPLD, provides for an extremely large number of applications. This logic may be used to create quite complex designs relatively easily using freely available Xilinx tools. Simtec Electronics provide a number of application notes accessible via the EB675001DIP resources page or on the supplied CD-ROM, several of which demonstrate the use of the CPLD.

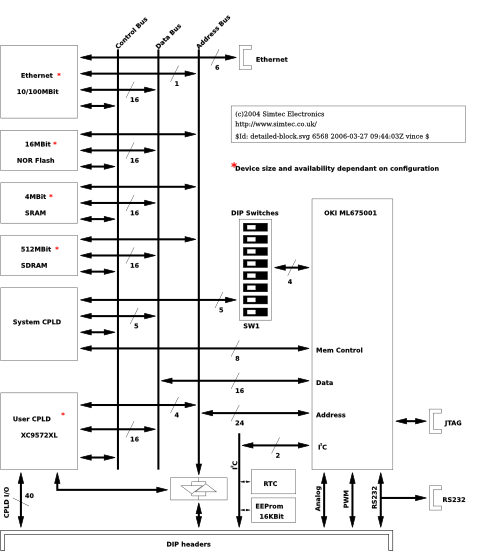

Figure 2.1. Detailed block diagram of the EB675001DIP

Detailed block diagram of the EB675001DIP
