2.11. Video output

The EB2410ITX has a flexible video system provided by the LCD controller within the S3C2410 SOC. The signals from the LCD controller are full exposed on PL15 including the ADC channels for the touch screen and power.

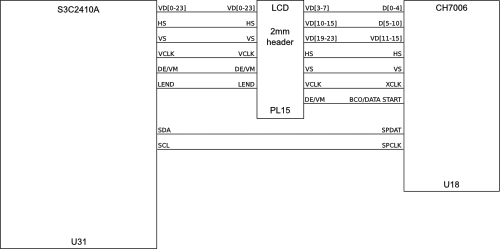

Figure 2.10. Video system connections

Video system connections

The Chrontel CH7006 is controlled from the S3C2410 using the I2C bus. The output of the device is routed to a standard SVGA connector (PL1), the RGB expansion header (PL10) and the SVIDEO port (PL3).

For full details on PL15 the EB2410ITX Connector and link pinouts document should be consulted, this contains addition information and comments relevant to using this product.
