2.1. Hardware overview

The IM2440D20 is a complete system on a module that includes a large number of Input/Output facilities. The module must be mounted in a carrier board to give access to the I/O.

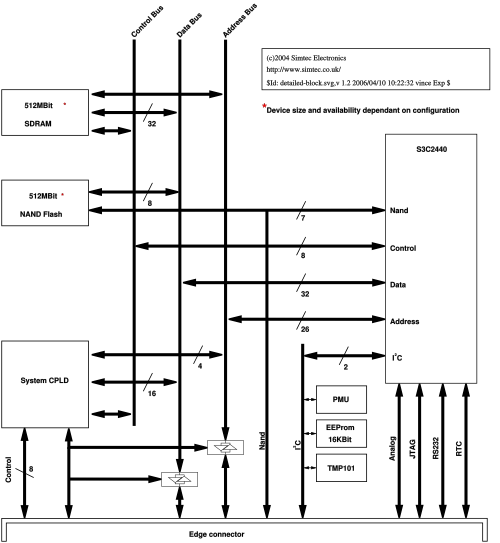

Figure 2.1. Detailed block diagram of the IM2440D20

Detailed block diagram of the IM2440D20
