The DM9000 network controller provides 100Mbit Ethernet connectivity to the system. It is decoded into the CS0 address space by the system CPLD as it uses the WAIT line to extend I/O cycles as necessary.

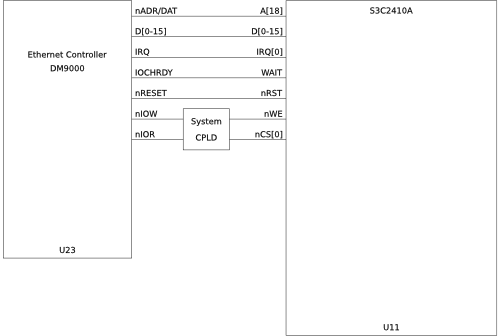

Figure 2.8. DM9000 to S3C2410 attachment
