'DePicture' Touch-screen Tablet Baseboard Resources

Screen sideSections:
Supported Modules
Documentation
Online Support
Other Pages

Supported Modules

The BBD20EUROU supports modules from the D20 Integrated modules range.

Currently supported modules are:

Samsung 2440 Module

IM2440D20 module The IM2440D20 contains everything necessary to implement a complete system. It removes the need for a designer to consider any high speed memory system elements, multiple voltage supplies or deal with complex Ball Grid Arrays (BGA). The 400MHz CPU coupled with up to 512MB of memory and 256MB of flash give a comprehensive system.


Samsung 2410 Module

IM2410D20 module The IM2410D20 contains everything necessary to implement a complete system. It removes the need for a designer to consider any high speed memory system elements, multiple voltage supplies or deal with complex Ball Grid Arrays (BGA). The 266MHz CPU coupled with 128MB of memory and 256MB of flash give a complete and relatively inexpensive system.


Documentation

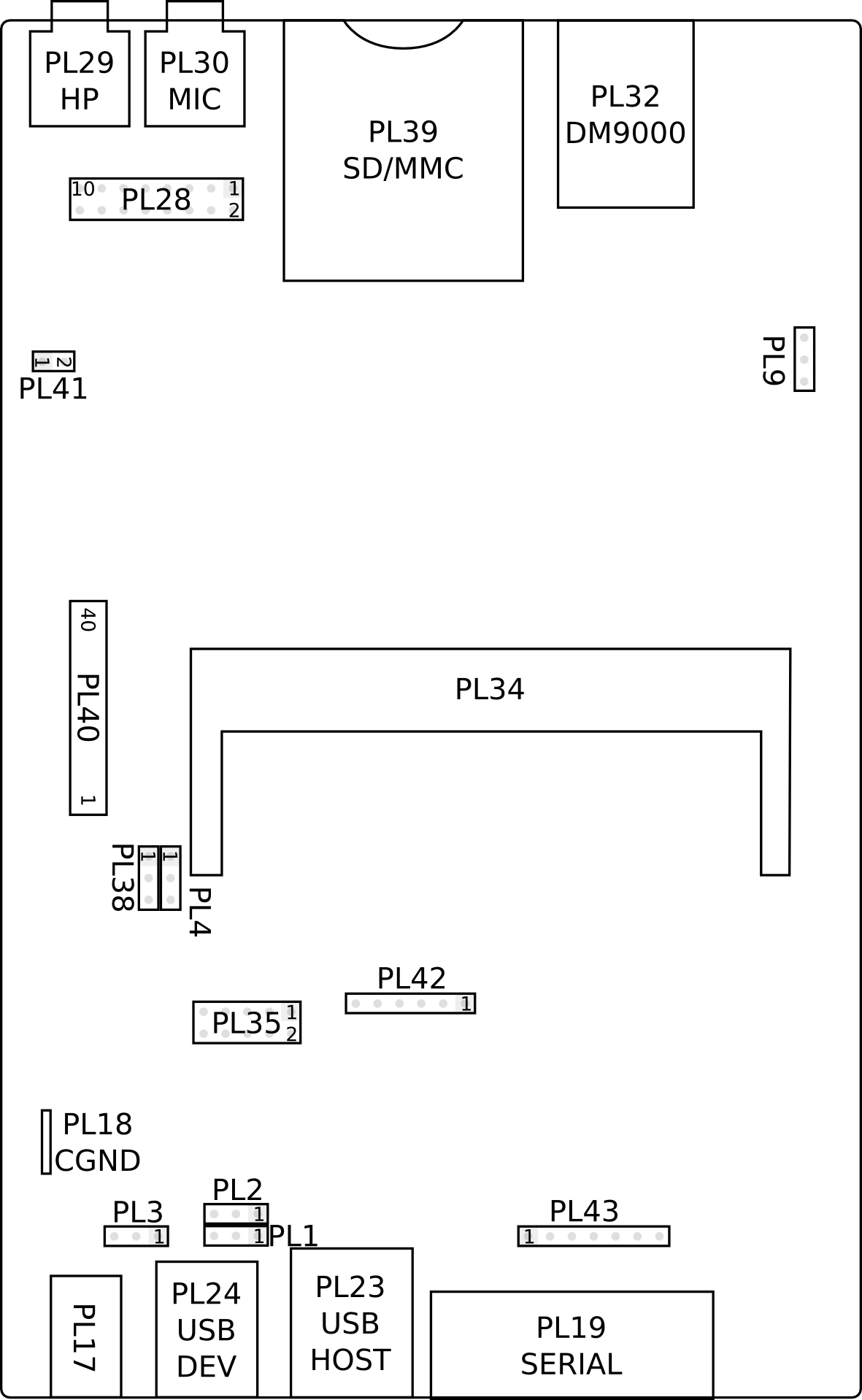

Connector and link locations Png Image file
Connector pinoutsHyperText Markup Language document
