'DePicture' Touch-screen Tablet Baseboard Introduction

Screen side

BBD20EUROU is simple tablet-format baseboard for our D20 module range. It has options for a 5.7" 640x480 touchscreen, and a Jenic Zigbee module. Standard features include 10/100Mbps ethernet, an accelerometer, RS232 serial, and both host and device USB ports.


This base board provides the peripheral I/O for a Simtec 200 pin SO-DIMM type Integrated module such as the IM2440D20. This base board supports a specific range of peripherals to enable the development of embedded tablet based designs such as smart-screens or PDAs.

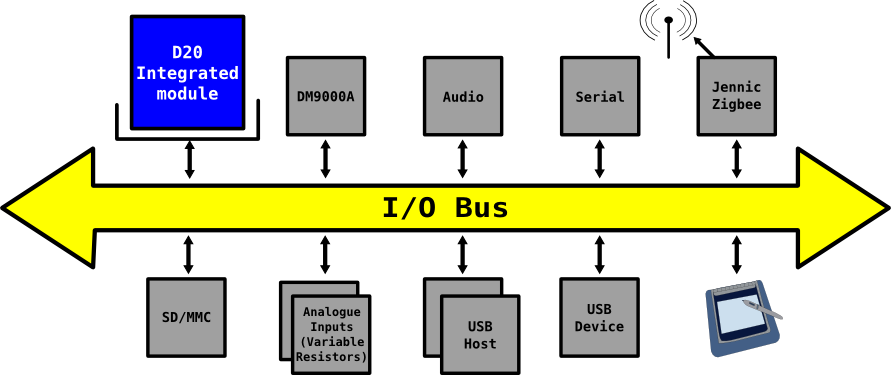

block diagram of the BBD20EUROU systemModular design ensures when the board is used as an integrator solution, costs can be saved simply by omitting the unnecessary functionality.

Simtec's commitment to complete solutions means development time for a wide range of embedded solutions can be minimised. The optional support DVD comes with a complete cross compiling build environment built upon Poky Linux. This comes by default configured to produce a simple PDA demonstration. This environment allows developers to rapidly progress in the production of the customers target application without spending excessive setup and configuration time.

Simtec can of course provide extensive support for every part of your project our range of services encompass every aspect of the process from development of initial concept through to final product.
