AN0016 - Adding an MMC card slot to the EB2410ITX

Schematic layoutSections:
Introduction
Hardware
Software
Documentation
Online Support

Introduction

The Samsung 2410 SOC used on the EB2410ITX has provision for a SD/MMC port. This port is available from the PL14 Auxillary expansion connector on pins 19 to 24. These pins are (as with most pins on the 2410) mutifunction and were previously allocated as GPIO, if being used for MMC/SD they cannot be used as GPIO and the simple matrix keyboard cannot be used.

Hardware

Overview

The basic hardware design is simply to connect the appropriate lines to a suitable connector. The only complication is ensuring suitable pull up resistors and noise suppression is included.

Schematic

The schematic was prepared in mentor pinacle.

Schematic of the EB2410ITX MMC application note The complete schematic diagram is reasonably straightforward (please refer to the documentation section for this schematic in alternate formats)

Board Layout

The schematic was used to realise a compact board design mainly constrained by the size of connectors required.

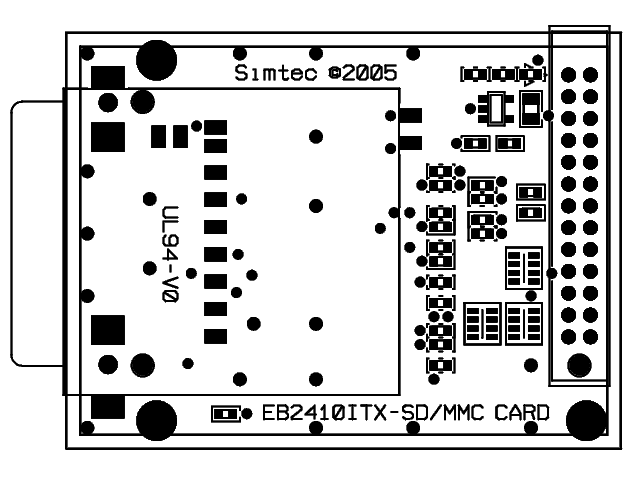

Board layout for the EB2410ITX MMC application note

Software

The software to use the s3c2410 MMC controller is being integrated into the 2.6 series Linux kernels. The simtec patchset contains the community patches to use this port.

Documentation

Schematic DiagramPDF filePng Image file
