AN0002 - Attaching an LCD module to the EB675001DIP

3D board view for the LCD module to EB675001DIP application noteSections:
Introduction
Documentation
Online Support

Introduction

This application note describes the addition of a HD44780 type LCD module to a EB675001DIP module. A minimal number of components is required for this and some very simple CPLD code. Indeed the EB675001DIP modules are shipped with this code in by default as it is used as part of the product test process.

Hardware

The hardware components required consist of the EB675001DIP module, a suitable HD44780 LCD module and a variable resistor for the LCD contrast control.

The schematic and board were created with the "lite" version of the Cadsoft EAGLE package. Though this design may be trivially reproduced on strip board.

Schematic

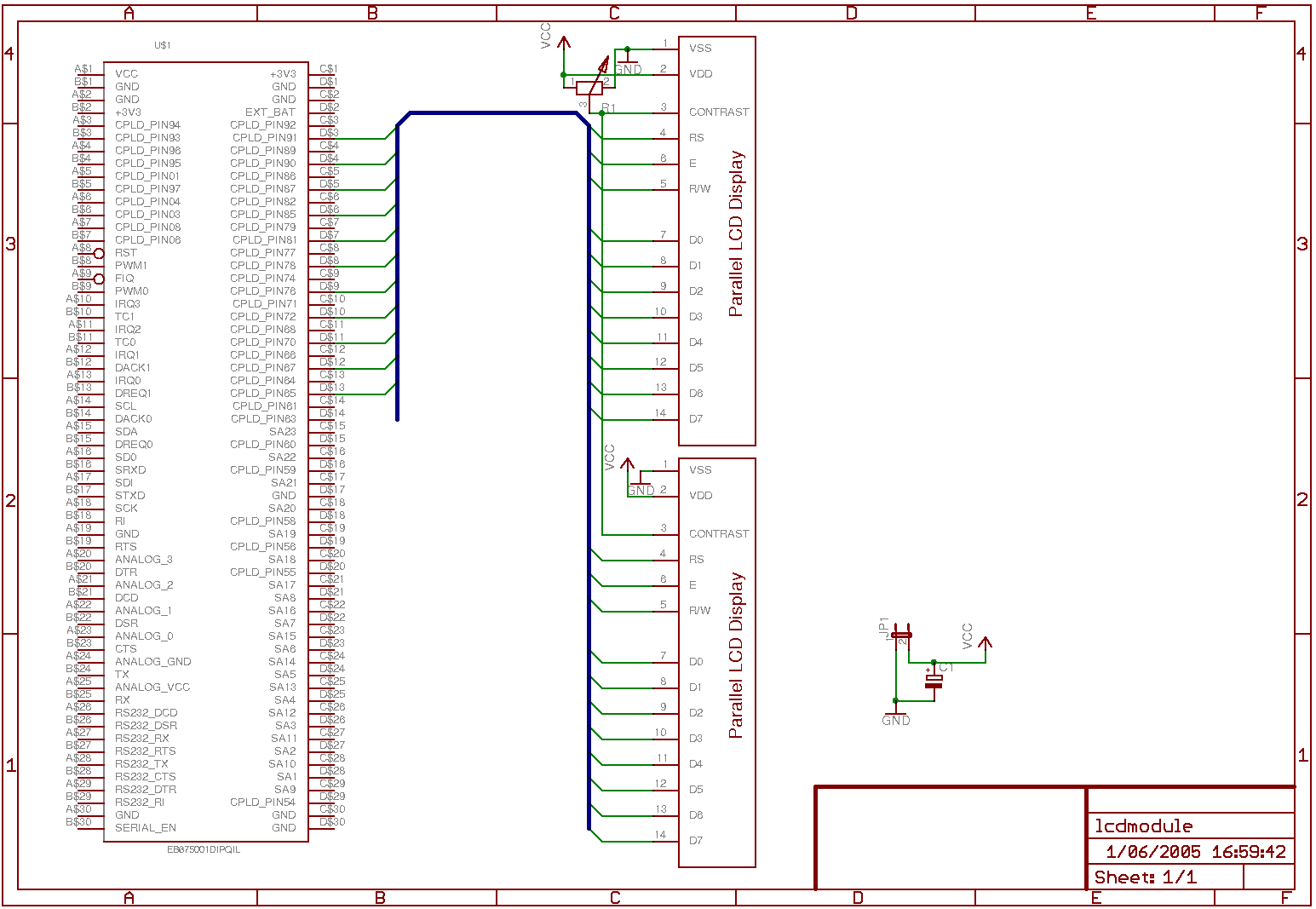

schematic for the LCD module to EB675001DIP application noteThe schematic was constructed using standard EAGLE library with a few additions

The complete schematic diagram is straightforward. (please refer to the documentation section for this schematic in several formats)


Board Design

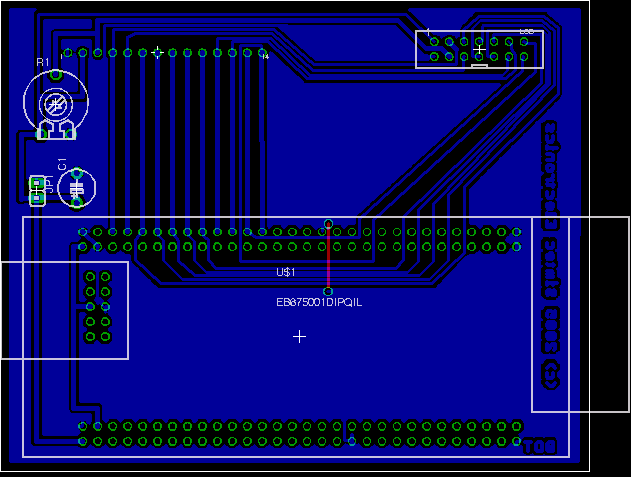

pcb design for the LCD module to EB675001DIP application noteA PCB design has been prepared in EAGLE. The main design parameters were :

these parameters mean this board should be very easy to manufacture although the design can be realised with simple strip board with little difficulty.

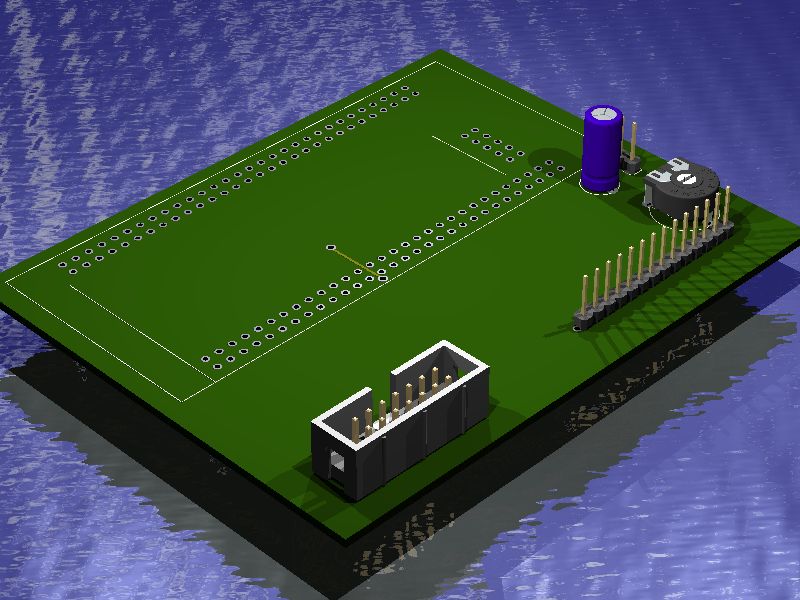

3D board view for the LCD module to EB675001DIP application noteA 3D povray model was created with Eagle 3D. This model is useful in designing enclosures and for visualising the completed design.

Prototype

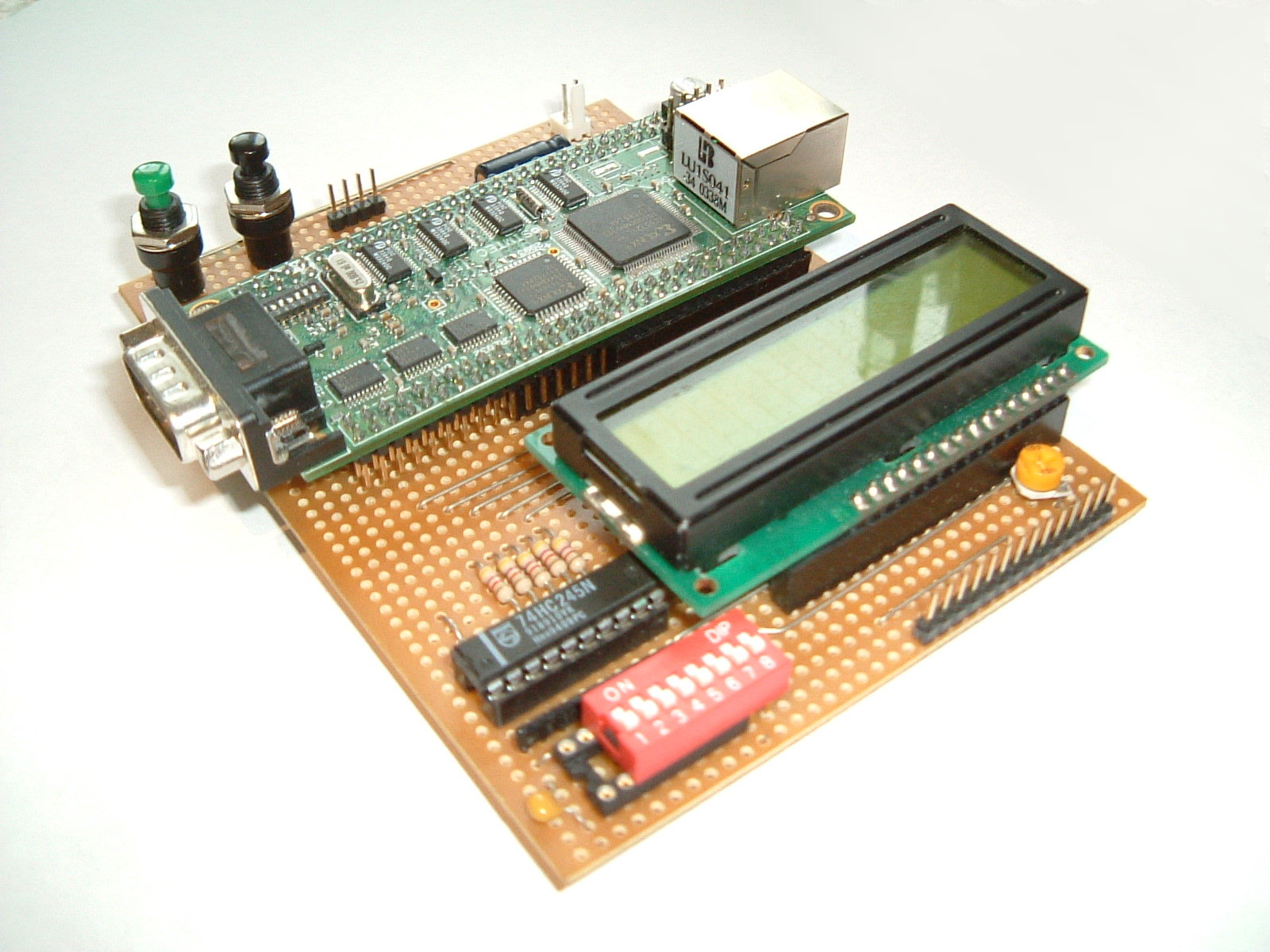

DescriptionA prototype has been constructed using stripboard.


Firmware

The complexity of this project (such as it is) comes from the CPLD code which is little more than an address decoder. The webpack project was created from the EB675001DIP example project.

Software

ABLE contains some basic display commands for modules attached in this manner. There is also a LCDProc project patch for use with the module in μCLinux

Documentation

Schematic DiagramPNG image filePostscript fileEAGLE Schematic file
